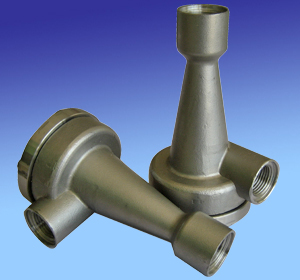

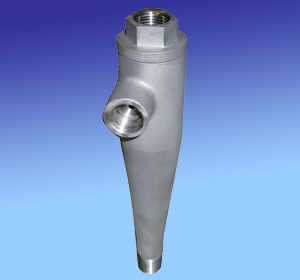

STANDARD CYCLONE SEPARATOR
Detailed Product Description
CS cyclone separator is mainly used to clean aqueous liquids containing dirt and solids. And transfuse the cleaned liquids to the seal area or other
needed areas.
→ DESIGN FEATURES:
- Standardizing design: Comply with JB/T 6633-1993.
- Optional types: CSA shell is forged. CSB core can be replaced with
rubber or ceramic.
- Thread connection : Meet the need of most connection for common use.
OPERATING CONDITIONS:
Temperature: <150.
Pressure: <6.3 MPa.
Thread connections: G1/2.
O-ring: Viton
