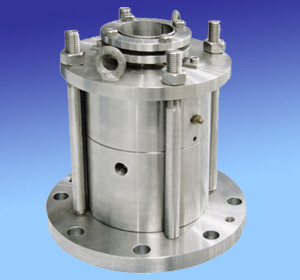

HW804 Balanced Multi Spring Cartridge Mixer and Agitator Seal
Mixser
and agitator seals are designed by balanced, multi-spring, dual
directional and either with bearing or without bearing and are used to
widely used in agitators, mixers and blenders as top, bottom and side
entry drives and working with the use of coolant and buffer fluid and
applied in case of aggressive and hazardous media.
Agitator seals, balanced, multi-spring, dual directional and either without bearing or with bearing
HWA
mechanical seals are used to seal agitators, mixers and blenders as
top, bottom and side entry drives and working with the use of coolant
and buffer fluid and applied in case of aggressive and hazardous media.
Shrink disk attachments , inboard stationary seat axially secured Flange
according to DIN 28138
Operating limitsPressure : Vacuum up to 16 bar
Temperature : -80 - 200°C
Speed : 10m/s
