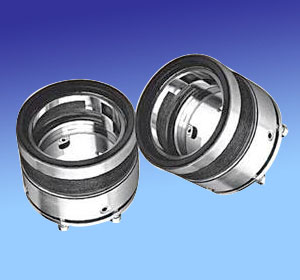

High Temperature, Rotating Head Metal Bellows Shaft Seal With
Lug Drive
Temperature: -75℃～ 425℃
Pressure: 2.0MPa(single ply)-6.9Mpa(double plys)
Speed: ≤25m/s
Equivalent John Crane Type 606
Rotary Ring: SiC/Carbon/TC
● Stationary Ring: SiC/TC
● Secondary Seal: Flexible Graphite
● Metal Bellows: AM350/Inconel 718
● Other Parts: Carp42 or PH17-4/316

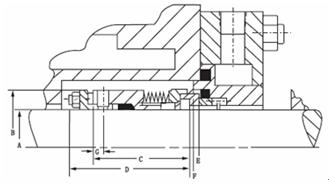

| Seal Dash Number | A(in.) 0.000 -0.002 | A(mm) 0.000 -0.051 | B(mm) REF | C(mm) REF | D(mm) REF | E(mm) ±.76 | F(mm) REF | G(mm) REF |
| -16 | 0.750 | 19.05 | 41.28 | 42.85 | 58.72 | 36.53 | 31.45 | 4.78 |
| -18 | 0.875 | 22.23 | 44.45 | 43.66 | 59.51 | 39.75 | 34.67 | 4.78 |
| -20 | 1.000 | 25.40 | 47.63 | 43.66 | 59.51 | 43.66 | 38.58 | 4.78 |
| -22 | 1.125 | 28.58 | 50.80 | 44.45 | 60.33 | 46.86 | 41.78 | 4.78 |
| -24 | 1.250 | 31.75 | 53.98 | 44.45 | 60.33 | 50.04 | 43.69 | 4.78 |
| -26 | 1.375 | 34.93 | 57.15 | 46.84 | 62.69 | 53.21 | 46.86 | 6.35 |
| -28 | 1.500 | 38.10 | 60.33 | 47.63 | 63.50 | 56.39 | 50.04 | 6.35 |
| -30 | 1.625 | 41.28 | 63.50 | 47.63 | 63.50 | 59.56 | 53.21 | 6.35 |
| -32 | 1.750 | 44.45 | 66.68 | 48.41 | 64.29 | 62.76 | 56.41 | 6.35 |
| -34 | 1.875 | 47.63 | 69.85 | 48.41 | 64.29 | 65.91 | 59.56 | 6.35 |
| -36 | 2.000 | 50.80 | 73.03 | 49.20 | 65.07 | 69.11 | 62.76 | 6.35 |
| -38 | 2.125 | 53.98 | 76.20 | 49.20 | 65.07 | 72.29 | 65.94 | 6.35 |
| -40 | 2.250 | 57.15 | 82.55 | 50.80 | 69.85 | 78.64 | 71.02 | 6.35 |
| -42 | 2.375 | 60.33 | 85.73 | 51.59 | 70.64 | 81.81 | 74.19 | 6.35 |
| -44 | 2.500 | 63.50 | 88.90 | 51.59 | 70.64 | 85.01 | 77.39 | 6.35 |
| -46 | 2.625 | 66.68 | 93.65 | 53.98 | 73.03 | 88.95 | 81.33 | 6.35 |
| -48 | 2.750 | 69.85 | 96.82 | 57.15 | 76.20 | 92.13 | 84.51 | 7.14 |
| -50 | 2.875 | 73.03 | 101.60 | 57.15 | 76.20 | 95.81 | 87.43 | 7.14 |
| -52 | 3.000 | 76.20 | 104.78 | 57.15 | 76.20 | 98.98 | 90.60 | 7.14 |
| -54 | 3.125 | 79.38 | 107.95 | 57.15 | 76.20 | 102.16 | 93.78 | 7.14 |
| -56 | 3.250 | 82.55 | 111.13 | 57.15 | 76.20 | 105.33 | 96.95 | 7.14 |
| -58 | 3.375 | 85.73 | 114.30 | 57.15 | 76.20 | 108.51 | 100.13 | 7.14 |
| -60 | 3.500 | 88.90 | 117.48 | 57.15 | 76.20 | 111.68 | 103.30 | 7.14 |
| -62 | 3.625 | 92.08 | 120.65 | 57.15 | 76.20 | 114.86 | 106.48 | 7.14 |
| -64 | 3.750 | 95.25 | 123.83 | 57.15 | 76.20 | 118.03 | 109.65 | 7.14 |
