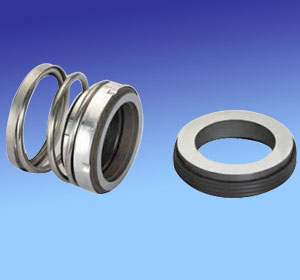

OPERATING LIMITS
Temperature: -30℃～ 200℃
Pressure: ≤1MPa
Speed: ≤12m/s
● Stationary Ring(Carbon/SiC/TC)
● Rotary Ring(SiC/TC/Carbon)
● Secondary Seal(VITON/PTFE VITON)
● Spring & Other Parts(SUS304/SUS316)

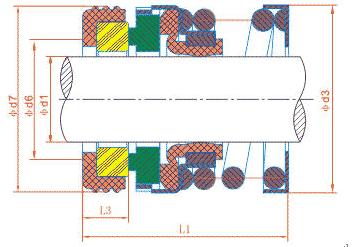

| Size | d1 | d3 | d6 | d7 | L1 | L3 |
| 3/8" | 9.525 | 23.5 | 14.3 | 22.23 | 28.6 | 6.4 |
| 1/2" | 12.700 | 26.0 | 17.5 | 25.40 | 28.6 | 6.4 |
| 5/8" | 15.875 | 30.0 | 20.6 | 31.75 | 32.5 | 8.7 |
| 3/4" | 19.050 | 32.5 | 23.8 | 34.93 | 32.5 | 8.7 |
| 7/8" | 22.225 | 37.5 | 27.0 | 38.10 | 34.1 | 8.7 |
| 1" | 25.400 | 44.0 | 30.2 | 41.28 | 36.5 | 9.5 |
| 1- 1/8" | 28.575 | 48.0 | 33.3 | 44.45 | 38.1 | 9.5 |
| 1- 1/4" | 31.750 | 50.0 | 36.5 | 47.63 | 38.1 | 9.5 |
| 1- 3/8" | 34.925 | 54.5 | 39.7 | 50.80 | 39.7 | 9.5 |
| 1- 1/2" | 38.100 | 58.5 | 42.9 | 53.98 | 39.7 | 9.5 |
| 1- 5/8" | 41.275 | 64.0 | 46.0 | 60.33 | 47.6 | 11.1 |
| 1- 3/4" | 44.450 | 67.0 | 49.2 | 63.50 | 47.6 | 11.1 |
| 1- 7/8" | 47.625 | 71.0 | 52.4 | 66.68 | 50.8 | 11.1 |
| 2" | 50.800 | 73.5 | 55.6 | 69.85 | 50.8 | 11.1 |
| 2- 1/4" | 57.150 | 78.4 | 65.0 | 79.38 | 57.2 | 13.5 |
| 2-1/2" | 63.500 | 84.9 | 70.0 | 85.73 | 60.3 | 13.5 |
| 10 | 10 | 23.5 | 16 | 24 | 25.0 | 7.0 |
| 11 | 11 | 23.5 | 16 | 24 | 25.0 | 7.0 |
| 12 | 12 | 26.0 | 17 | 26 | 25.0 | 7.0 |
| 14 | 14 | 28.0 | 21 | 28 | 25.5 | 7.0 |
| 15 | 15 | 30.0 | 21 | 28 | 29.5 | 7.0 |
| 16 | 16 | 32.0 | 22 | 32 | 33.5 | 10.0 |
| 18 | 18 | 32.5 | 25 | 35 | 36.5 | 10.0 |
| 19 | 19 | 32.5 | 25 | 35 | 36.5 | 10.0 |
| 20 | 20 | 35.5 | 27 | 38 | 38.0 | 10.0 |
| 22 | 22 | 37.5 | 29 | 40 | 40.3 | 10.0 |
| 25 | 25 | 42.0 | 32 | 44 | 39.3 | 10.0 |
| 28 | 28 | 45.5 | 34 | 46 | 40.0 | 10.0 |
| 30S | 30 | 46.0 | 35 | 45 | 38.2 | 7.5 |
| 30L | 30 | 48.0 | 38 | 50 | 40.0 | 10.0 |
| 32 | 32 | 50.0 | 40 | 54 | 40.0 | 10.0 |
| 35 | 35 | 54.5 | 44 | 58 | 42.0 | 10.0 |
| 38 | 38 | 58.5 | 46 | 60 | 42.6 | 10.0 |
| 40 | 40 | 62.5 | 48 | 64 | 42.6 | 10.0 |
| 45 | 45 | 66.5 | 52 | 66 | 45.0 | 10.0 |
| 50 | 50 | 72.5 | 58 | 72 | 54.6 | 10.0 |
| 55S | 55 | 72.0 | 60 | 75 | 59.4 | 12.0 |
| 55L | 55 | 76.0 | 60 | 78 | 59.8 | 12.0 |
| 60 | 60 | 80.0 | 65 | 80 | 63.0 | 12.0 |
| 65 | 65 | 85.0 | 70 | 85 | 64.0 | 13.0 |
| 70 | 70 | 92.0 | 75 | 92 | 60.0 | 11.0 |
