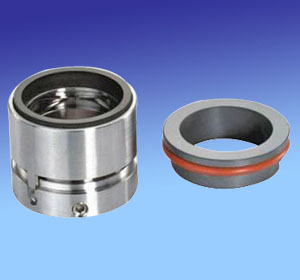

OPERATING LIMITS
Temperature: -20℃～ 180℃
Pressure: ≤2.5MPa
Speed: ≤20m/s
Medium: Liquid rich in solid impurity or high viscosity,
such as refine sugar,sewage and paper industry.
Design Features:
a. Single face, balanced.
b. Conform to the DIN24960 and GB6556 standards.
c. Equivalent to Burgmann HJ92N<
| Seal size d(mm) | d3 | d6 | d7 | L3 | L1K |
| 18 | 32 | 27 | 33 | 15.0 | 37.5 |
| 20 | 34 | 29 | 35 | 15.0 | 37.5 |
| 22 | 36 | 31 | 37 | 15.0 | 37.5 |
| 24 | 38 | 33 | 39 | 15.0 | 40.0 |
| 25 | 39 | 34 | 40 | 15.0 | 40.0 |
| 28 | 42 | 37 | 43 | 15.0 | 42.5 |
| 30 | 44 | 39 | 45 | 15.0 | 42.5 |
| 32 | 47 | 42 | 48 | 15.0 | 42.5 |
| 33 | 47 | 42 | 48 | 15.0 | 42.5 |
| 35 | 49 | 44 | 50 | 15.0 | 42.5 |
| 38 | 54 | 49 | 56 | 16.0 | 45.0 |
| 40 | 56 | 51 | 58 | 16.0 | 45.0 |
| 43 | 59 | 54 | 61 | 16.0 | 45.0 |
| 45 | 61 | 56 | 63 | 16.0 | 45.0 |
| 48 | 64 | 59 | 66 | 16.0 | 45.0 |
| 50 | 66 | 62 | 70 | 17.0 | 47.5 |
| 53 | 69 | 65 | 73 | 17.0 | 47.5 |
| 55 | 71 | 67 | 75 | 17.0 | 47.5 |
| 58 | 78 | 70 | 78 | 18.0 | 52.5 |
| 60 | 80 | 72 | 80 | 18.0 | 52.5 |
| 63 | 83 | 75 | 83 | 18.0 | 52.5 |
| 65 | 85 | 77 | 85 | 18.0 | 52.5 |
| 68 | 88 | 81 | 90 | 18.5 | 52.5 |
| 70 | 90 | 83 | 92 | 19.0 | 60.0 |
| 75 | 99 | 88 | 97 | 19.0 | 60.0 |
| 80 | 104 | 95 | 105 | 19.0 | 60.0 |
| 85 | 109 | 100 | 110 | 19.0 | 60.0 |
| 90 | 114 | 105 | 115 | 20.5 | 65.0 |
| 95 | 119 | 110 | 120 | 20.5 | 65.0 |
| 100 | 124 | 115 | 125 | 20.5 | 65.0 |
