OPERATING LIMITS
Temperature: -30℃～ 200℃
Pressure: ≤1.6MPa
Speed: ≤20m/s

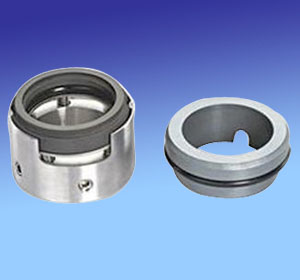

● Stationary Ring(Carbon/SiC/TC)
● Rotary Ring(SiC/TC/Carbon)
● Secondary Seal(VITON/PTFE VITON)
● Spring & Other Parts(SUS304/SUS316)
| Seal size d(mm) | d3 | d6 | d7 | L1 | L3 | f |
| 14 | 25 | 21 | 25 | 35.0 | 10.0 | 6 |
| 16 | 27 | 23 | 27 | 35.0 | 10.0 | 6 |
| 18 | 33 | 29 | 33 | 37.5 | 11.5 | 7 |
| 20 | 35 | 29 | 35 | 37.5 | 11.5 | 7 |
| 22 | 37 | 31 | 37 | 37.5 | 11.5 | 7 |
| 24 | 39 | 33 | 39 | 40.0 | 11.5 | 8 |
| 25 | 40 | 34 | 40 | 40.0 | 11.5 | 8 |
| 28 | 43 | 37 | 43 | 42.5 | 11.5 | 8 |
| 30 | 45 | 39 | 45 | 42.5 | 11.5 | 8 |
| 32 | 47 | 42 | 48 | 42.5 | 11.5 | 8 |
| 33 | 48 | 42 | 48 | 42.5 | 11.5 | 8 |
| 35 | 50 | 44 | 50 | 42.5 | 11.5 | 8 |
| 38 | 55 | 49 | 56 | 45.0 | 14.0 | 8 |
| 40 | 57 | 51 | 58 | 45.0 | 14.0 | 8 |
| 43 | 60 | 54 | 61 | 45.0 | 14.0 | 8 |
| 45 | 62 | 56 | 63 | 45.0 | 14.0 | 8 |
| 48 | 65 | 59 | 66 | 45.0 | 14.0 | 8 |
| 50 | 67 | 62 | 70 | 47.5 | 15.0 | 8 |
| 53 | 70 | 65 | 73 | 47.5 | 15.0 | 8 |
| 55 | 72 | 67 | 75 | 47.5 | 15.0 | 8 |
| 58 | 79 | 70 | 78 | 52.5 | 15.0 | 9 |
| 60 | 81 | 72 | 80 | 52.5 | 15.0 | 9 |
| 63 | 84 | 75 | 83 | 52.5 | 15.0 | 9 |
| 65 | 86 | 77 | 85 | 52.5 | 15.0 | 9 |
| 68 | 89 | 81 | 90 | 52.5 | 18.0 | 9 |
| 70 | 91 | 83 | 92 | 60.0 | 18.0 | 9 |
| 75 | 99 | 88 | 97 | 60.0 | 18.0 | 10 |
| 80 | 104 | 95 | 105 | 60.0 | 18.2 | 10 |
| 85 | 109 | 100 | 110 | 60.0 | 18.2 | 10 |
| 90 | 114 | 105 | 115 | 65.0 | 18.2 | 10 |
| 95 | 119 | 110 | 120 | 65.0 | 17.2 | 10 |
| 100 | 124 | 115 | 125 | 65.0 | 17.2 | 10 |
